Maximally excitatory stimuli from trained models¶

This notebook illustrates how to compute the stimuli that maximally excite a specific neuron.

# basic imports
import matplotlib.pyplot as plt
import numpy as np
import torch

plt.rcParams['figure.dpi'] = 200

Optimal naturalistic stimuli¶

We first find the optimal naturalistic stimuli. To do that, we simulate the responses of the network (including the neuron of interest) to all stimuli from a fixed dataset of stimuli. The optimal, or here maximally exctitatory naturalistic stimulus to be precise, is the stimulus for which the response of the chosen neuron is maximal. Finding this is simple and does not require numerical optimization with gradients. We find the stimulus per cell type based on its cell in the central column. At least in our coarse model, the offset version of this stimulus would also maximally excite the equivalently offset neighboring cells of the same type.

from flyvision import NetworkView
from flyvision.datasets.sintel import AugmentedSintel
from flyvision.analysis.optimal_stimuli import (
    FindOptimalStimuli,
    GenerateOptimalStimuli,
    plot_stim_response,
)

# let's load the dataset and the pretrained network
dataset = AugmentedSintel(tasks=["lum"], temporal_split=True)
network_view = NetworkView("flow/0000/000")

[2024-10-14 23:30:04] network_view:125 Initialized network view at /groups/turaga/home/lappalainenj/FlyVis/private/flyvision/data/results/flow/0000/000

findoptstim = FindOptimalStimuli(network_view, dataset)

[2024-10-14 23:30:12] network:222 Initialized network with NumberOfParams(free=734, fixed=2959) parameters.
[2024-10-14 23:30:12] chkpt_utils:35 Recovered network state.

For the T4c neuron, we would expect that the maximally excitatory stimulus is an ON-edge moving upward.

optstim = network_view.optimal_stimulus_responses("T4c")

stim_resp_plot = plot_stim_response(
    optstim.stimulus.stimulus,
    optstim.stimulus.response,
    1 / 100,
    *network_view.connectome_view.get_uv("T4c"),
    figsize=[5, 1.6],
    ylabel=None,
    label_peak_response=False,
)

png

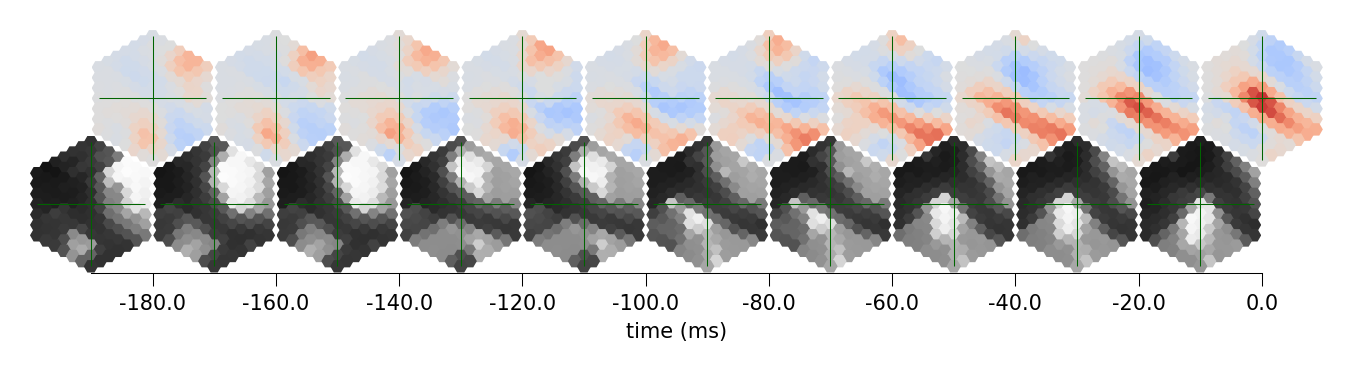

We see that the the stimulus indeed contains an ON-edge component moving upward and this is the portion of the stimulus that T4c cells respond most to. What’s unclear is whether the other parts of the stimulus have an influence on the response.

Regularized optimal stimuli¶

We can regularize the optimal stimuli with the objective to keep the response of the cell intact while bringing the stimulus pixels to a neutral grey value.

stim_resp_plot = plot_stim_response(
    optstim.regularized_stimulus,
    optstim.response,
    1 / 100,
    *network_view.connectome_view.get_uv("T4c"),
    figsize=[5, 1.6],
    ylabel=None,
    label_peak_response=False,
)

png

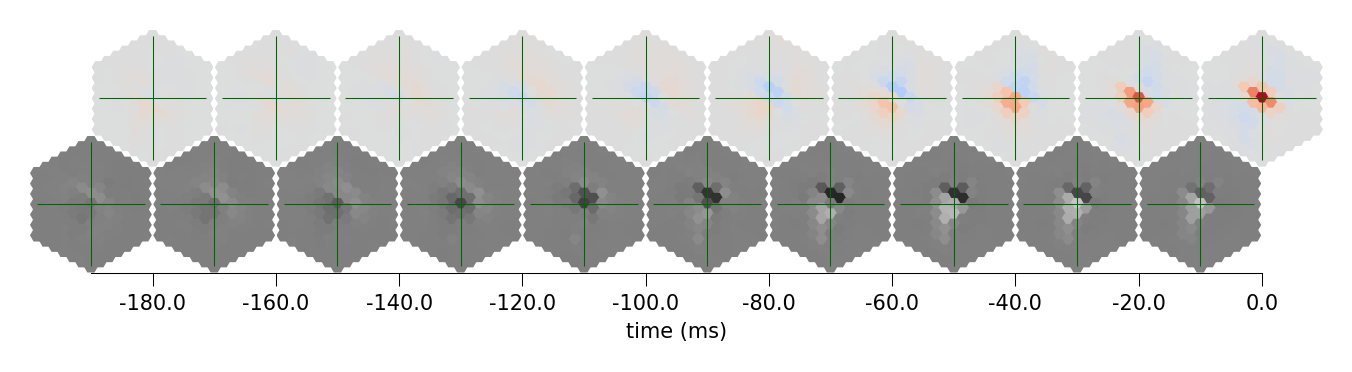

This looks remarkably different! Now only a central black portion follow by the ON-edge moving upward remains in the stimulus. Let’s make sure that the central cell response is really the same as before! This is the entire time trace.

fig = plt.figure(figsize=[2, 1])
time = np.arange(len(optstim.central_target_response)) / 100
plt.plot(time, optstim.central_target_response)
plt.plot(time, optstim.central_predicted_response)
plt.xlabel("time (s)")
plt.ylabel("response")

Text(0, 0.5, 'response')

png

This looks quite similar! One can play with the regularization parameters of the function regularized_optimal_stimuli to tune this.

Generate artificial optimal stimuli from scratch¶

If one is able to optimize the naturalistic stimulus with the gradient, why don’t we use the gradient to generate an optimal stimulus from scratch (or rather random noise). We do that in the following. Again for T4c, we would expect that it would have some sort of ON-edge moving upwards.

genoptstim = GenerateOptimalStimuli(network_view)

[2024-10-14 23:30:24] chkpt_utils:35 Recovered network state.

artoptstim = genoptstim.artificial_optimal_stimuli("T4c", t_stim=0.8)

stim_resp_plot = plot_stim_response(
    artoptstim.stimulus,
    artoptstim.response,
    1 / 100,
    *network_view.connectome_view.get_uv("T4c"),
    figsize=[5, 1.6],
    ylabel=None,
    label_peak_response=False,
)

png

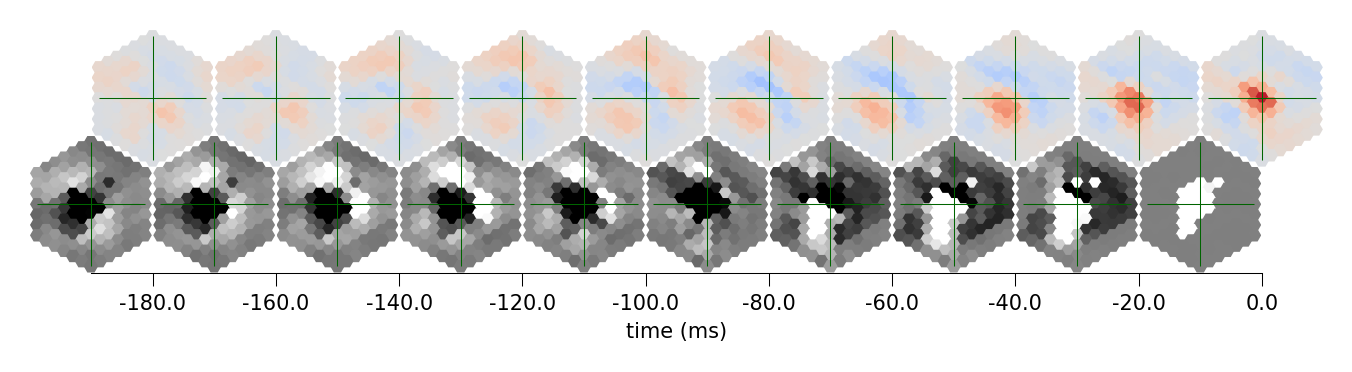

Wow! This stimulus is contains very similar components to the one before and is much more saturated! It also contains new ON-components already from the beginning!

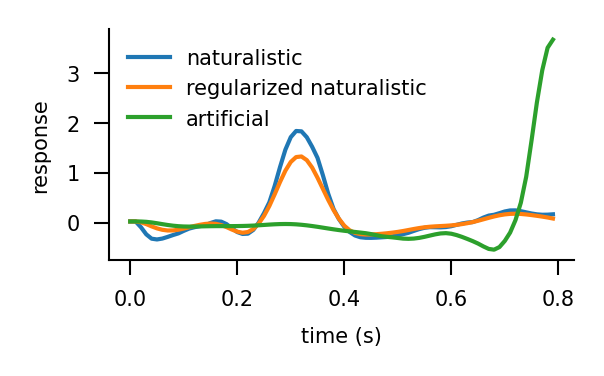

Last, let’s compare which stimulus excited the neuron the most.

fig = plt.figure(figsize=[2, 1])
time = np.arange(len(optstim.central_target_response)) / 100
plt.plot(time, optstim.central_target_response, label='naturalistic')
plt.plot(time, optstim.central_predicted_response, label='regularized naturalistic')
plt.plot(
    time,
    artoptstim.response[:, :, artoptstim.response.shape[-1] // 2].flatten(),
    label='artificial',
)
plt.xlabel("time (s)")
plt.ylabel("response")
plt.legend()

<matplotlib.legend.Legend at 0x7fbc14900be0>

png
