Moving edge responses¶

This notebook introduces moving edge responses and the direction selectivity index (DSI). The DSI measures motion selectivity of cells to visual input.

# basic imports
import matplotlib.pyplot as plt
import numpy as np
import torch

plt.rcParams["figure.dpi"] = 200

Moving edge stimuli¶

To elicit moving edge responses and characterise the motion selectivity of neurons, experimenters show an ON or OFF edge moving in different cardinal directions. We generate and render these stimuli with the MovingEdge dataset.

# import dataset and visualization helper
from flyvision.datasets.moving_bar import MovingEdge
from flyvision.analysis.animations.hexscatter import HexScatter

# initialize dataset
# make the dataset
dataset = MovingEdge(
    offsets=[-10, 11],  # offset of bar from center in 1 * radians(2.25) led size
    intensities=[0, 1],  # intensity of bar
    speeds=[19],  # speed of bar in 1 * radians(5.8) / s
    height=80,  # height of moving bar in 1 * radians(2.25) led size
    post_pad_mode="continue",  # for post-stimulus period, continue with the last frame of the stimulus
    t_pre=1.0,  # duration of pre-stimulus period
    t_post=1.0,  # duration of post-stimulus period
    dt=1 / 200,  # temporal resolution of rendered video
    angles=list(np.arange(0, 360, 30)),  # motion direction (orthogonal to edge)
)

# view stimulus parameters
dataset.arg_df
# the dataset has four samples, one corresponding to each row

	angle	width	intensity	t_stim	speed
0	0	80	0	0.428766	19
1	0	80	1	0.428766	19
2	30	80	0	0.428766	19
3	30	80	1	0.428766	19
4	60	80	0	0.428766	19
5	60	80	1	0.428766	19
6	90	80	0	0.428766	19
7	90	80	1	0.428766	19
8	120	80	0	0.428766	19
9	120	80	1	0.428766	19
10	150	80	0	0.428766	19
11	150	80	1	0.428766	19
12	180	80	0	0.428766	19
13	180	80	1	0.428766	19
14	210	80	0	0.428766	19
15	210	80	1	0.428766	19
16	240	80	0	0.428766	19
17	240	80	1	0.428766	19
18	270	80	0	0.428766	19
19	270	80	1	0.428766	19
20	300	80	0	0.428766	19
21	300	80	1	0.428766	19
22	330	80	0	0.428766	19
23	330	80	1	0.428766	19

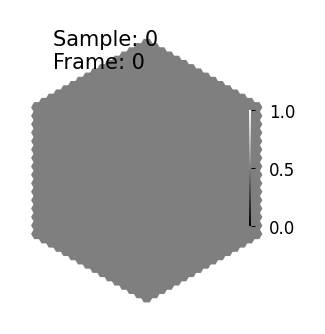

# visualize single sample
# %#matplotlib notebook
animation = HexScatter(
    dataset[3][None, ::25, None], vmin=0, vmax=1
)  # intensity=1, radius=6
animation.animate_in_notebook()

png

Moving edge response¶

Now that we have generated the stimulus, we can use it to drive a trained connectome-constrained network.

from flyvision import results_dir
from flyvision.network import NetworkView

# model are already sorted by task error
# we take the best task-performing model from the pre-sorted ensemble
network_view = NetworkView(results_dir / "flow/0000/000")

[2024-10-14 21:01:17] network_view:125 Initialized network view at /groups/turaga/home/lappalainenj/FlyVis/private/flyvision/data/results/flow/0000/000

stims_and_resps = network_view.moving_edge_responses(dataset)

We’ve now computed network moving edge responses for all cells in the network.

Response traces¶

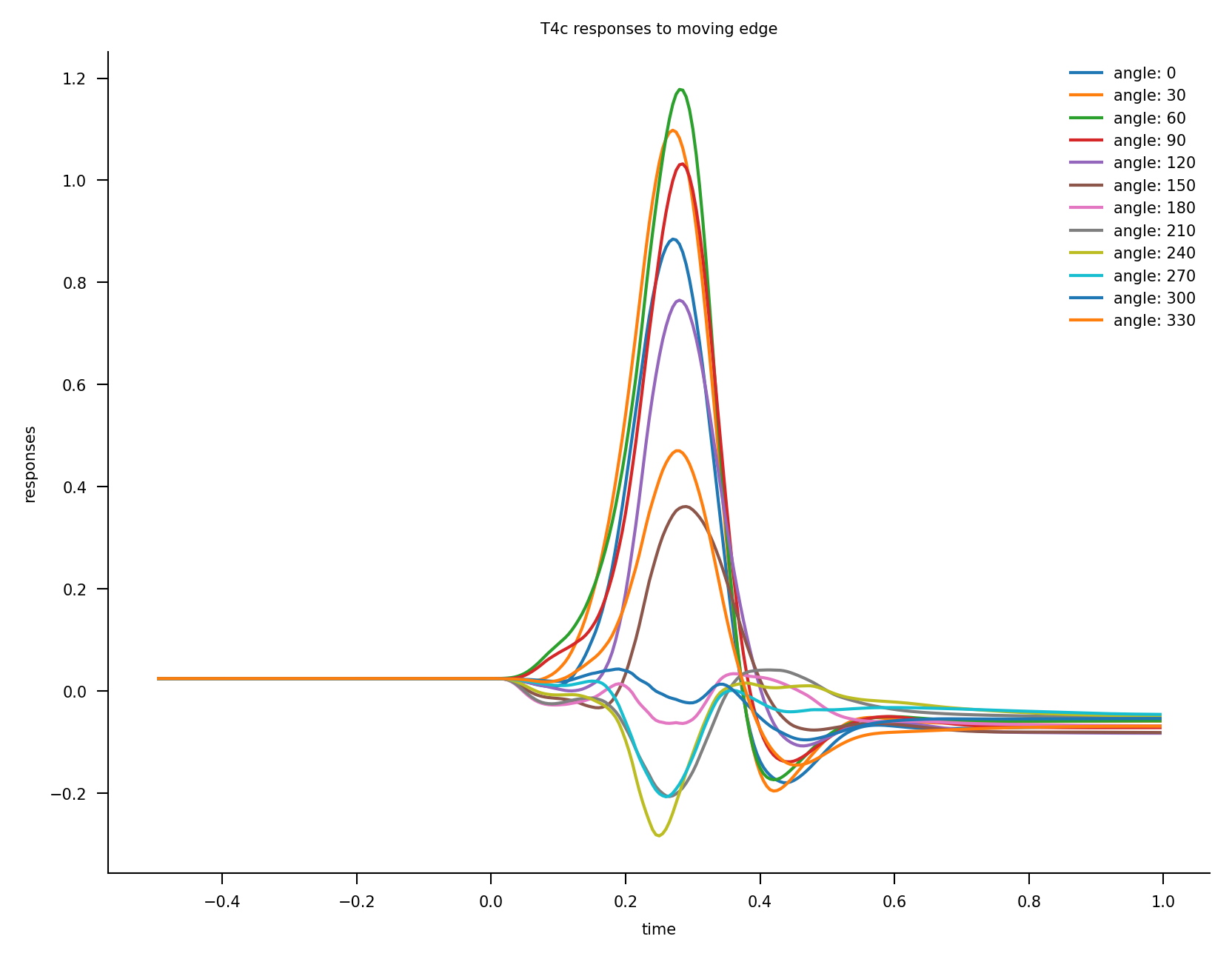

We can plot single-cell response traces with stims_and_resps['responses'].custom.plot_traces(). Here, we plot responses of T4c cells to edges with intensity 1 (ON edges).

stims_and_resps["responses"].custom.where(
    cell_type="T4c", intensity=1, time=">-0.5,<1.0"
).custom.plot_traces(x="time", legend_labels=["angle"])
ax = plt.gca()
ax.set_title("T4c responses to moving edge")

Text(0.5, 1.0, 'T4c responses to moving edge')

png

Direction selectivity index (DSI)¶

The Direction Selectivity Index (DSI) quantifies a cell’s preference for stimuli moving in a particular direction.

The DSI is derived from the following steps: 1. Obtain the neuron’s peak responses to stimuli moving in different directions \(\theta\) and at different speeds \(S\). 2. Rectify these peak responses to ensure they are non-negative. 3. Compute the DSI using the equation:

\[ DSI_{t_i}(I) = \frac{1}{\lvert S \rvert} \sum_{S \in S} \left\lvert \frac{\sum_{\theta \in \Theta} r^{peak}_{t_{central}}(I, S, \theta) e^{i\theta}}{\max_{I \in I} \left\lvert \sum_{\theta \in \Theta} r^{peak}_{t_{central}}(I, S, \theta) \right\rvert} \right\rvert \]

Where: - \(DSI_{t_i}(I)\) is the Direction Selectivity Index for cell type \(t_i\) at stimulus intensity \(I\). - \(\lvert S \rvert\) is the number of different speeds at which stimuli are moved. - \(r^{peak}_{t_{central}}(I, S, \theta)\) represents the rectified peak response of the central cell in hexagonal space of a cell type, for a given stimulus intensity \(I\), speed \(S\), and direction \(\theta\). - \(\theta\) is varied across all tested directions \(\Theta\). - \(e^{i\theta}\) introduces the directional component by weighting the response by the complex exponential of the angle of movement. - The denominator normalizes the responses, ensuring that DSI values range from 0 to 1.

The DSI values range from 0 to 1. A DSI of 0 indicates no directional preference, while a DSI of 1 indicates a strong preference for a specific direction.

For the T4c cell plotted before, we can see that it preferentially responds to ON edges moving at an angle of 60 degrees, so we expect to see a large DSI.

We compute the DSI with flyvision.analysis.direction_selectivity_index.

from flyvision.analysis.moving_bar_responses import direction_selectivity_index

# get DSI for T4c cell
dsis = direction_selectivity_index(stims_and_resps)
print(f"T4c DSI: {dsis.custom.where(cell_type='T4c', intensity=1).item():.2f}")

T4c DSI: 0.63

We compute the preferred direction of the cell with flyvision.analysis.preferred_direction (this is the direction that the tuning lobe points towards). We would expect the preferred direction to be around 60 degrees based on the response traces.

from flyvision.analysis.moving_bar_responses import preferred_direction

pds = preferred_direction(stims_and_resps)
print(
    f"T4c preferred direction: {pds.custom.where(cell_type='T4c', intensity=1).item() / np.pi * 180:.2f} degrees"
)

T4c preferred direction: 56.24 degrees

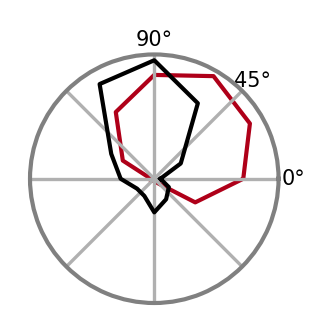

We can also inspect the direction selecity of a cell type visually, by plotting the angular tuning with plot_angular_tuning.

Here we see clearly how the cell is tuned to stimuli moving at a 60 degree angle.

from flyvision.analysis.moving_bar_responses import plot_angular_tuning

plot_angular_tuning(stims_and_resps, cell_type="T4c", intensity=1)

(<Figure size 300x300 with 1 Axes>, <PolarAxes: >)

png

DSI and tuning curve correlation¶

With the dsi() function we can also compute DSIs for every cell type at once. Since the selectivity of some cell types have been determined experimentally, we can then compare our model to experimental findings by computing the correlation between the model DSIs for known cell types with their expected motion selectivity.

from flyvision.analysis.moving_bar_responses import dsi_correlation_to_known

dsi_corr = dsi_correlation_to_known(direction_selectivity_index(stims_and_resps)).median()

print(f"DSI correlation = {dsi_corr.item(): .2f}")

DSI correlation =  0.89

Further, for certain cell types, their actual tuning curves have also been measured experimentally, so we can correlate our model cell’s tuning to the true values. For T4c, the cell is known to tune to stimuli moving at 90 degrees, so the correlation should be relatively high.

from flyvision.analysis.moving_bar_responses import correlation_to_known_tuning_curves

corrs = correlation_to_known_tuning_curves(stims_and_resps)

print(
    f"T4c tuning curve correlation = {corrs.custom.where(cell_type='T4c', intensity=1).squeeze().item():.2f}"
)

T4c tuning curve correlation = 0.54

In fact, tuning curves for all T4 and T5 cells have been measured, so we can compute the correlation for all 8 cell types.

t4_corrs = corrs.custom.where(cell_type=["T4a", "T4b", "T4c", "T4d"], intensity=1)
t5_corrs = corrs.custom.where(cell_type=["T5a", "T5b", "T5c", "T5d"], intensity=0)

print(
    f"T4 tuning curve correlations: {t4_corrs.cell_type.values}\n{t4_corrs.squeeze().values}"
)

T4 tuning curve correlations: ['T4a' 'T4b' 'T4c' 'T4d']
[0.93699979 0.71944939 0.53721792 0.85661064]

print(
    f"T5 tuning curve correlations: {t5_corrs.cell_type.values}\n{t5_corrs.squeeze().values}"
)

T5 tuning curve correlations: ['T5a' 'T5b' 'T5c' 'T5d']
[0.84125431 0.90320943 0.94956469 0.90100505]

So, the model yields accurate predictions for all T4 and T5 cell types.

Ensemble responses¶

Now we can compare motion selectivity properties across an ensemble of trained models. First we need to again simulate the network responses.

from flyvision import EnsembleView

ensemble = EnsembleView(results_dir / "flow/0000")
# choose best 10
ensemble = ensemble[ensemble.argsort()[:10]]

Loading ensemble:   0%|          | 0/50 [00:00<?, ?it/s]


[2024-10-14 21:01:40] ensemble:166 Loaded 50 networks.



Loading ensemble:   0%|          | 0/10 [00:00<?, ?it/s]


[2024-10-14 21:01:46] ensemble:166 Loaded 10 networks.

%%capture
stims_and_resps = ensemble.moving_edge_responses(dataset=dataset)

Response traces¶

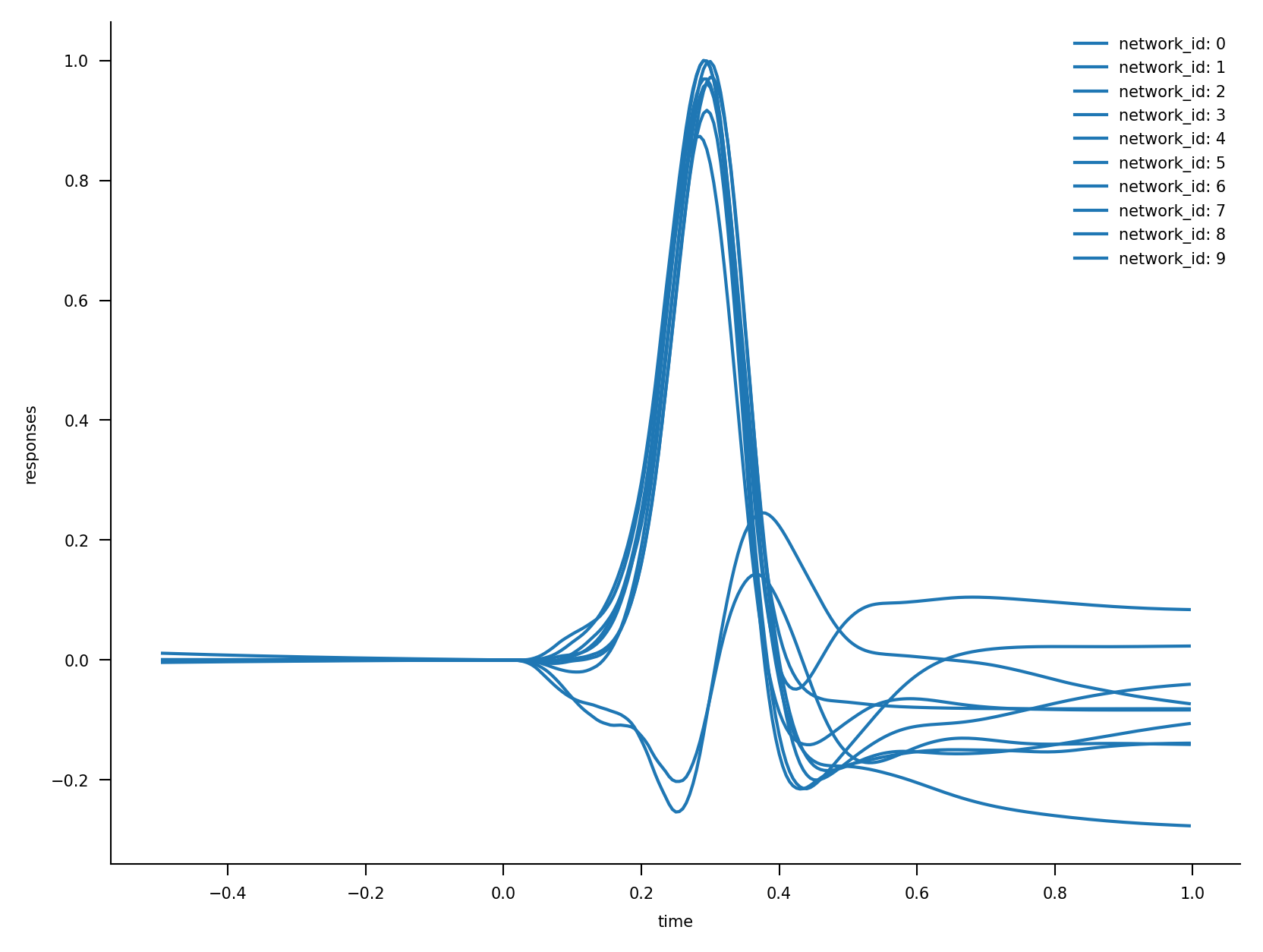

We can once again plot response traces for a single cell type.

We subtract the initial value of each trace and divide by the max as the network neuron activities are in arbitrary units.

We plot only T4c responses to ON edges moving at a 90-degree angle.

responses = (
    stims_and_resps["responses"]
    - stims_and_resps["responses"].custom.where(time=0).values
)

responses = responses / np.abs(responses).max(("sample", "frame"))

responses.custom.where(
    cell_type="T4c",
    intensity=1,
    time=">-0.5,<1.0",
    angle=90,
).custom.plot_traces(
    x="time", plot_kwargs=dict(color="tab:blue"), legend_labels=["network_id"]
)

<Axes: xlabel='time', ylabel='responses'>

png

Though for most networks T4c responses are correctly predicted to the stimuli, there are some networks in the ensemble with different responses.

Direction selectivity index (DSI)¶

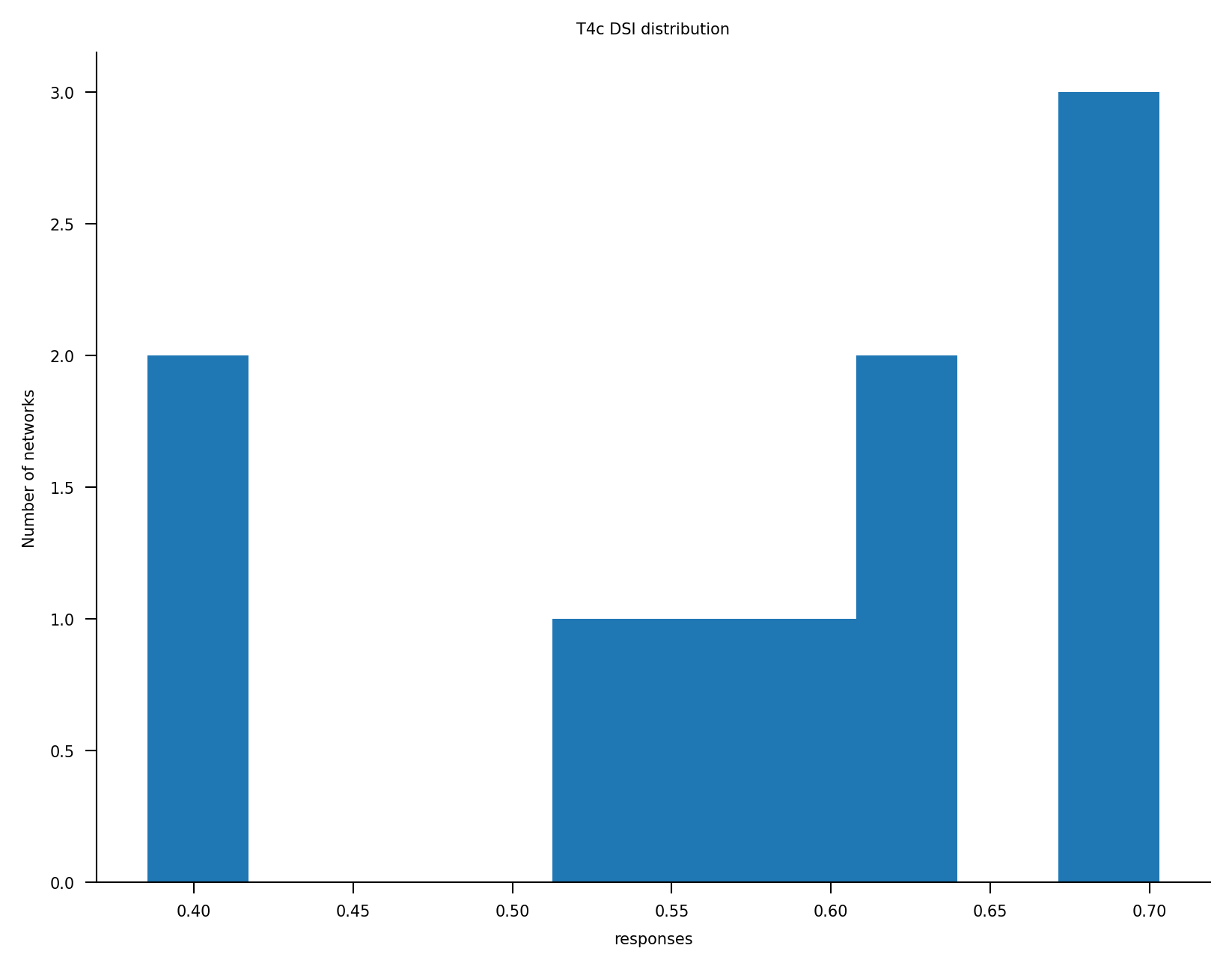

We can also compute direction selectivity indices for each network in the ensemble.

dsis = direction_selectivity_index(stims_and_resps)

dsis.custom.where(cell_type="T4c", intensity=1).plot.hist()
ax = plt.gca()
ax.set_title("T4c DSI distribution")
ax.set_ylabel("Number of networks")

Text(0, 0.5, 'Number of networks')

png

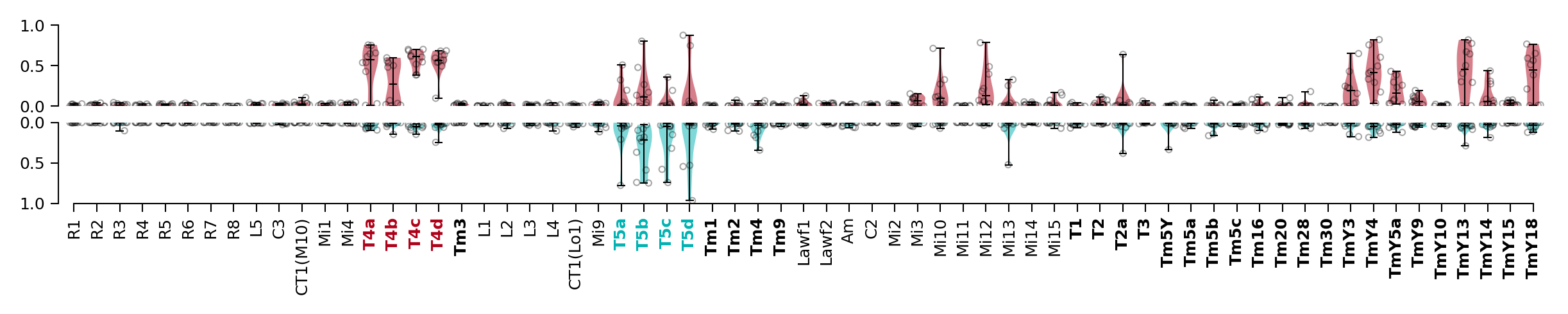

Most networks in this group recover some direction selectivity for T4c. We can also plot the distribution of DSIs per cell type for both ON and OFF-edge stimuli across the ensemble.

from flyvision.analysis.moving_bar_responses import dsi_violins_on_and_off

fig, ax = dsi_violins_on_and_off(
    dsis,
    dsis.cell_type,
    bold_output_type_labels=True,
    output_cell_types=ensemble[ensemble.names[0]]
    .connectome.output_cell_types[:]
    .astype(str),
    figsize=[10, 1.2],
    color_known_types=True,
    fontsize=6,
    scatter_best_index=0,
    scatter_best_color=plt.get_cmap("Blues")(1.0),
)

png

DSI correlation¶

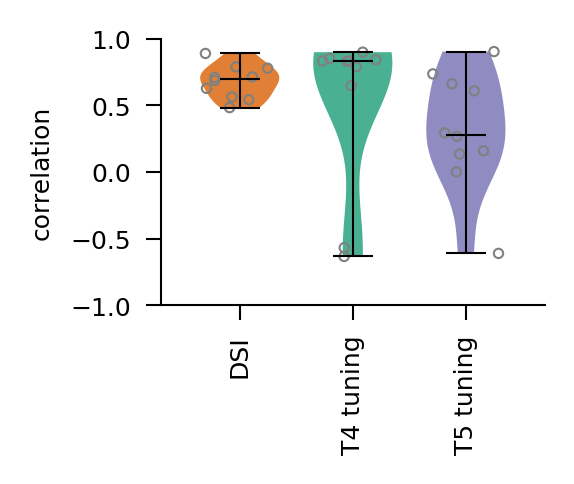

Lastly, we look at the correlations to ground-truth DSIs and tuning curves across the ensemble. This provides us with a high-level understanding of the accuracy of known motion tuning predictions.

dsi_corr = dsi_correlation_to_known(direction_selectivity_index(stims_and_resps))

tuning_corrs = correlation_to_known_tuning_curves(stims_and_resps)

t4_corrs = (
    tuning_corrs.custom.where(cell_type=["T4a", "T4b", "T4c", "T4d"], intensity=1)
    .median("neuron")
    .squeeze()
)
t5_corrs = (
    tuning_corrs.custom.where(cell_type=["T5a", "T5b", "T5c", "T5d"], intensity=0)
    .median("neuron")
    .squeeze()
)

dsi_corr.shape, t4_corrs.shape, t5_corrs.shape

((10,), (10,), (10,))

from flyvision.analysis.visualization.plots import violin_groups

fig, ax, *_ = violin_groups(
    np.stack([dsi_corr.values, t4_corrs.values, t5_corrs.values], axis=0)[:, None, :],
    ["DSI", "T4 tuning", "T5 tuning"],
    ylabel="correlation",
    figsize=(1.8, 1.5),
    ylim=(-1, 1),
    colors=[
        plt.get_cmap("Dark2")(0.125),
        plt.get_cmap("Dark2")(0),
        plt.get_cmap("Dark2")(0.25),
    ],
    color_by="experiments",
    scatter_edge_color="gray",
    scatter_radius=5,
    violin_alpha=0.8,
)

png
